Optic Module for CDMA/GSM/DCS/WCDMA/LTE Repeater RF Optic Transceiver

FOB Reference Price:Get Latest Price
$1.00 - $150.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
XINLUN
Model Number:
RFOT-1310
Product name:
Optic Module for CDMA/GSM/DCS/WCDMA/LTE Repeater RF Optic Transceiver
Wavelength:
Downlink: 1550±20nm Uplink: 1310±20nm
Frequency range:
300MHz~2.4GHz
Max gain:
20±2dB
VSWR:
1.4
PIM3:
≤-60dBc(0dBm/2CH)
Noise:
≤-133dBm/Hz
Isolation:
≥60dB
Coulor:
sliver
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
paper box
Port
Shenzhen;Guangzhou;Hong Kong
Product Description


Technical Specifications
Product Name
RF Optic Transceiver for CDMA/GSM/DCS/WCDMA/LTE Repeater
Wavelength
Downlink:1550±20nm           Uplink:1310±20nm
Output Power
3dBm±2dBm
Input Power
-15~6dBm
Luminous power alarm
≤-3dBm
Optical power alarm
≤-16dBm
Optical connector
FC/APC
Luminous power detection
Range -3~6dBm,Error±2dB
Optical power detection
Range-18~6dBm,Error±2dB
Frequency Range
300MHz~2.4GHz
Max gain
20±2dB
Link gain
0±2dB(Uplink,Downlink)
Gain Adjustment(ATT)
Range≥30dB,stepping 1dB,Error±1.5dB
Flatness
≤1dB
VSWR
≤1.4
PIM3
≤-60dBc(0dBm/2CH)
Noise
≤-133dBm/Hz
Isolation
≥60dB
Emission
≤ -60dBm/100KHz(100MHz~3GHz)
Time delay
60ns
Operation Temperature
-20~65℃
Working current
≤200mA(+12V power)
Power
DC+6V~+15V,Power loss<2.5W
Telecom Connector
RS232 ,data rate 9600bps

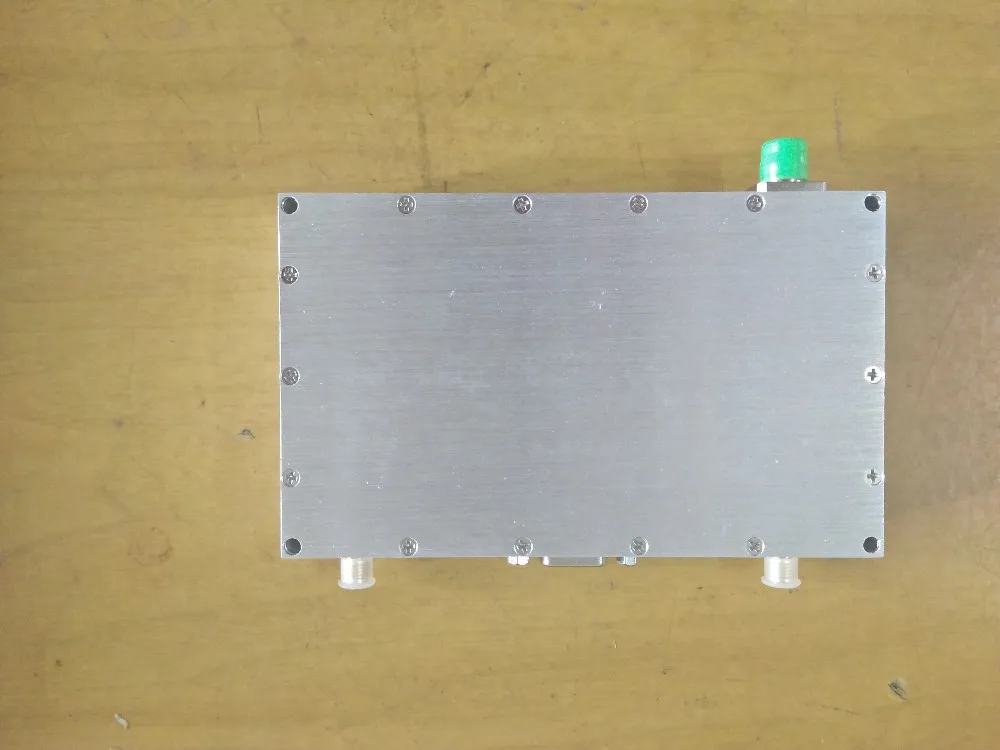

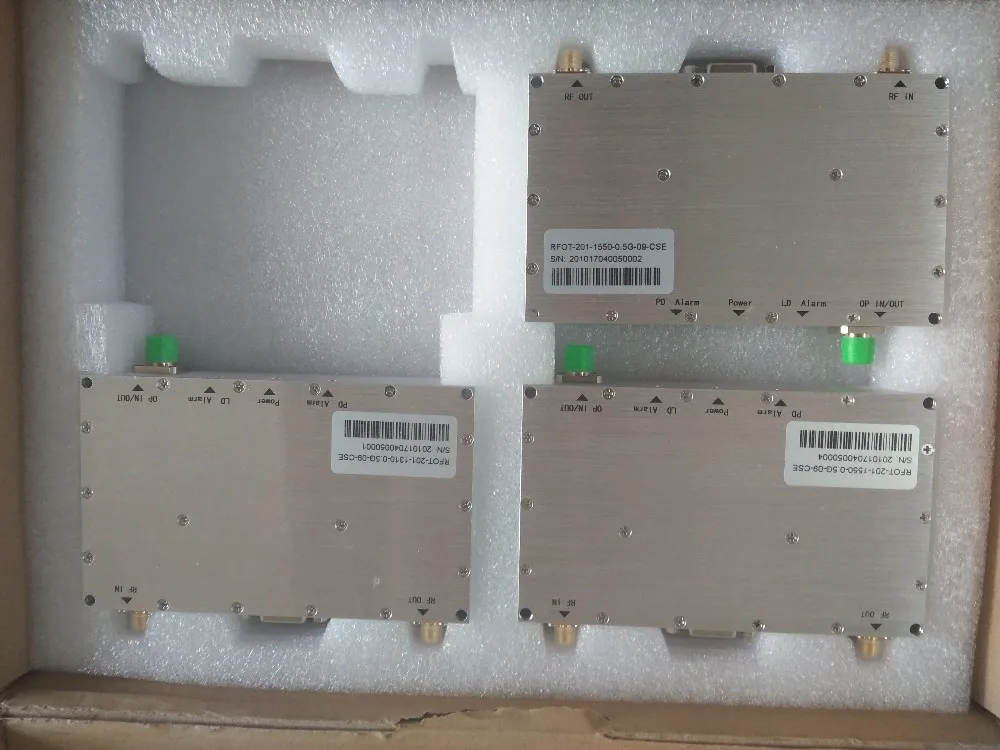

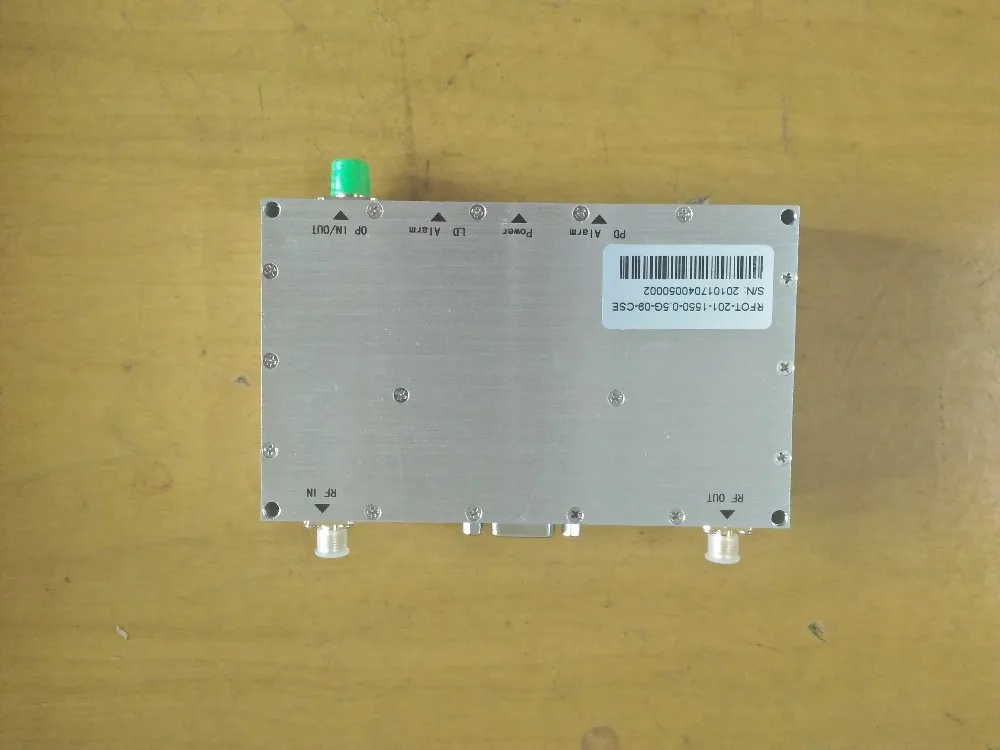

Products Show

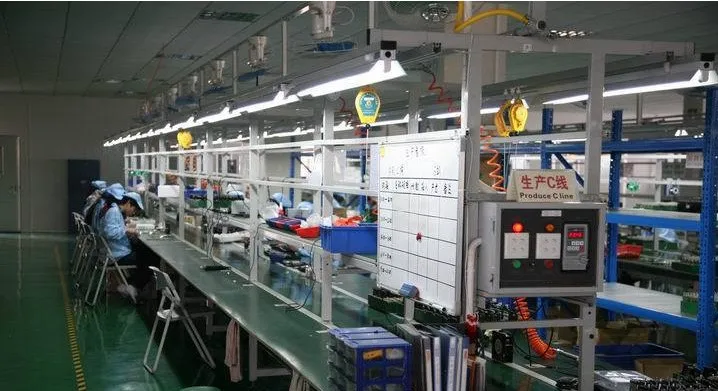

Our Company

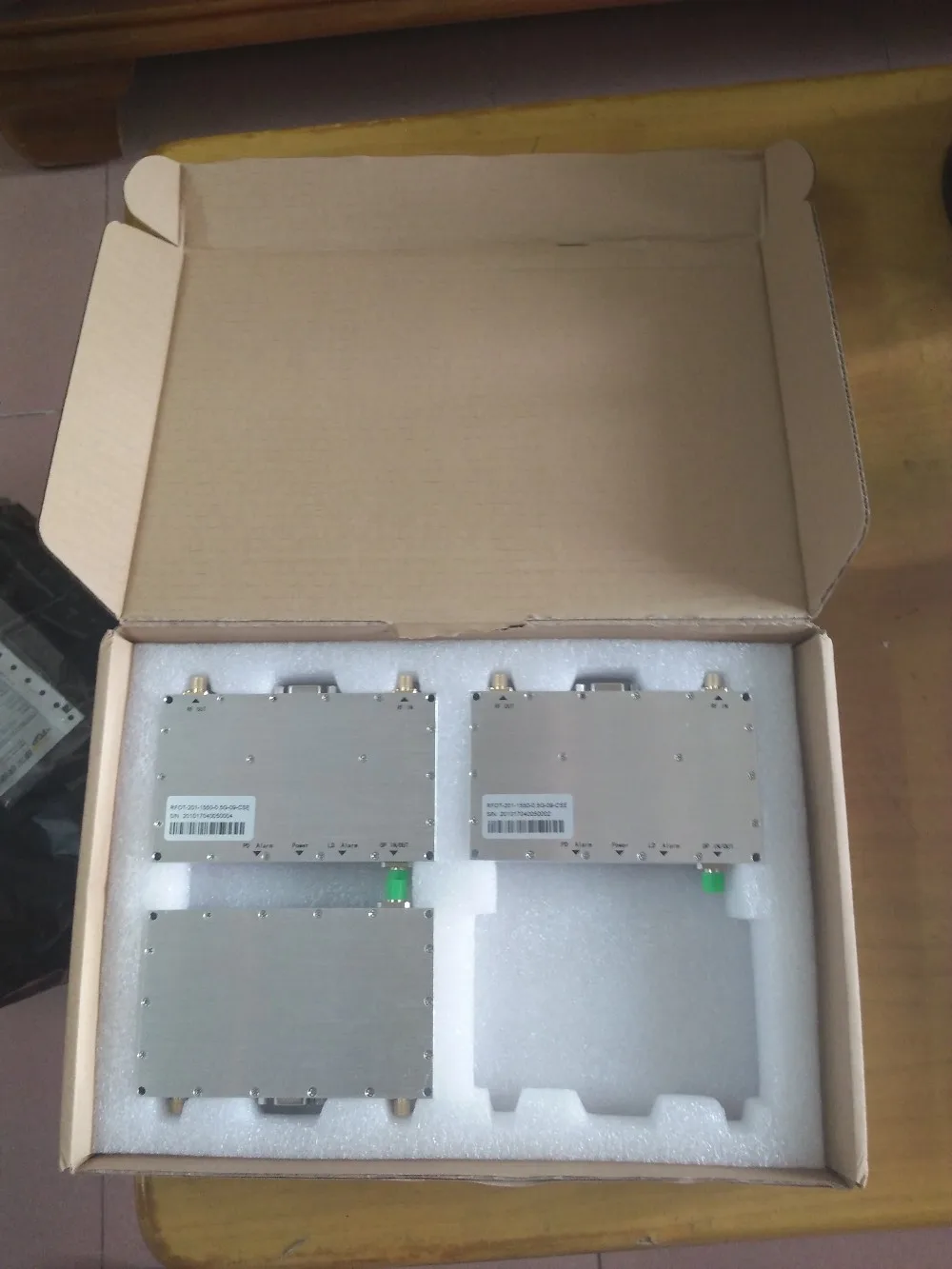

Packing & Delivery

Packing Details  : paper box;

Delivery Details : 3-100 days after paid full moeny




FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: No, we don't offer the sample for free charge.

Q: What is your terms of payment ?

A: Payment<=3000usd, 100% in advance. Payment>3000USD, 60% T/T in advance ,balance before shippment.
