Hot selling 5/6/7dB 698-2700MHz directional coupler with N Female Connector

FOB Reference Price:Get Latest Price
$1.00 - $25.00 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
XINLUN
Model Number:
OHQ-69827-5/6/7N
Product Name:
5/6/7dB 698-2700MHz directional coupler with N Female Connector
Frequency Range:
698-2700MHz
Coupling dB:
5/6/7dB
VSWR:
<1.25
PIM3:
-150dBc
Impedance:
50 Ohm
Connetor:
N Female
Colour:
Sliver or Black
Weight:
0.285kg
Application:
Indoor
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
paper box
Port
Shenzhen,Hong Kong
Lead Time :
Shipped in 7 days after paid money
Product Description

Features:

1.Multiband frequency range;

2.Minimal insertion loss;

3.Very low passive intermodulation(PIM);

4.Designed for indoor and outdoor applications.


Technical specifications
Product Number
OHQ-69827-5N
OHQ-69827-6N
OHQ-69827-7N
Frequency Range
698~2700MHz
VSWR
<1.25
Coupling
5±0.7dB
6±0.7dB
7±0.7dB
Insertion Loss
<0.5dB
<0.5dB
<0.5dB
Isolation
25dB
Im.3rd Order
-150dBc(2*43dBm)
Maximum Input Power
300W
Normal Impedance
50 Ohm
Connector
N-F
Operating Temperature
-20℃~+55℃
Operating Humidity
5%~95%
Dimensions(L×W×H)
156mm×58mm×17mm
Weight
285g

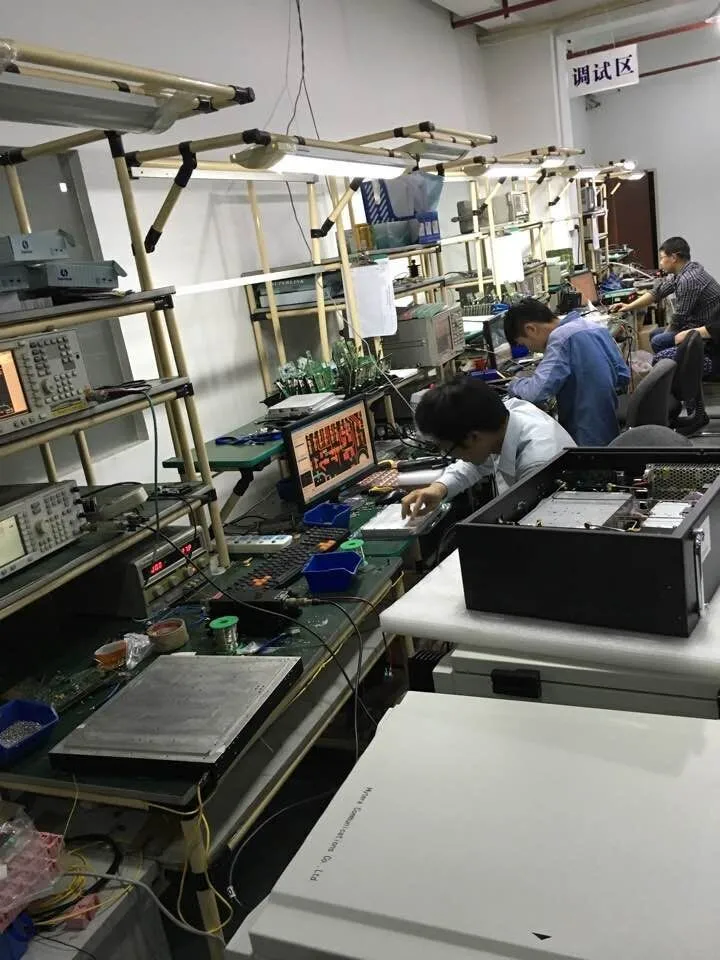

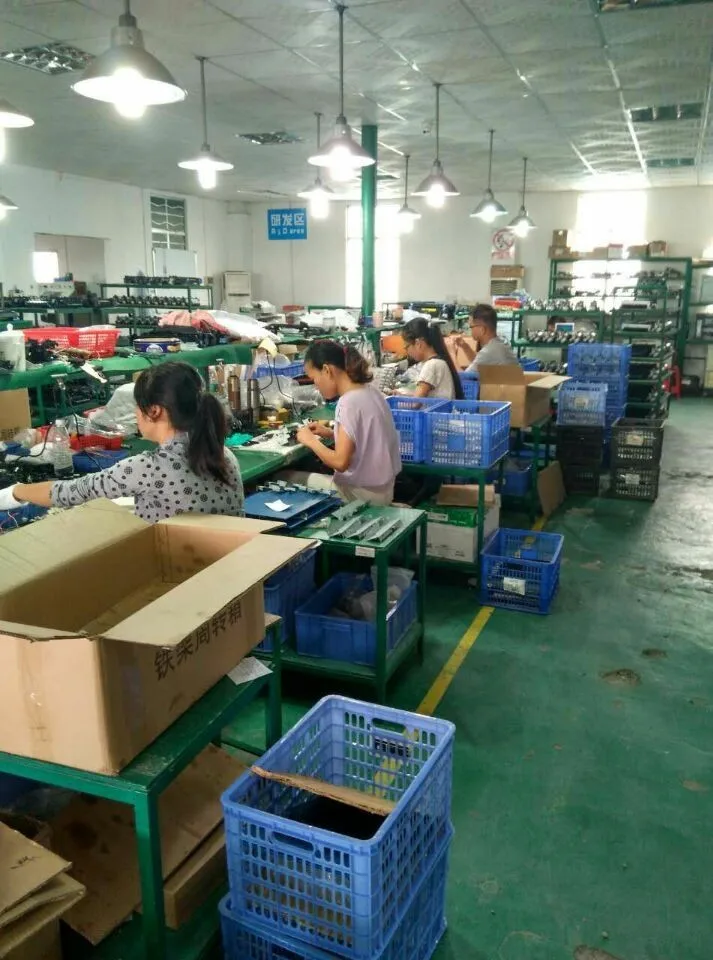

Our Factory

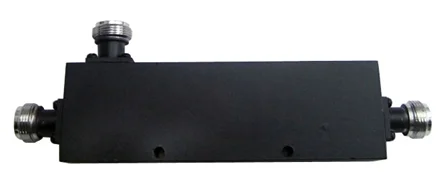

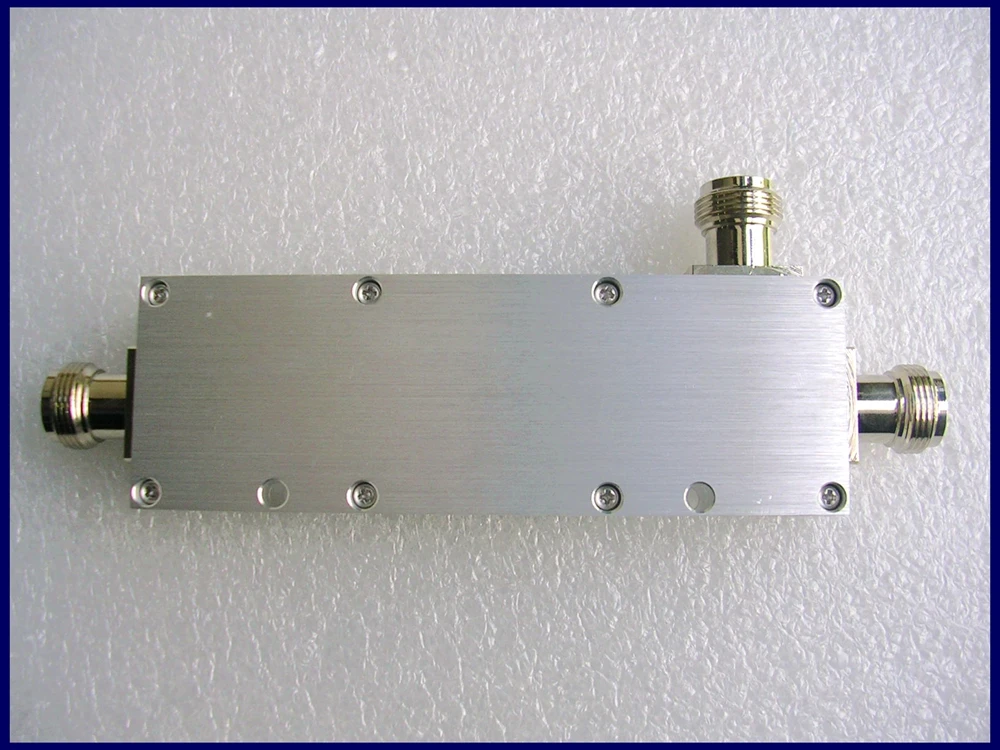

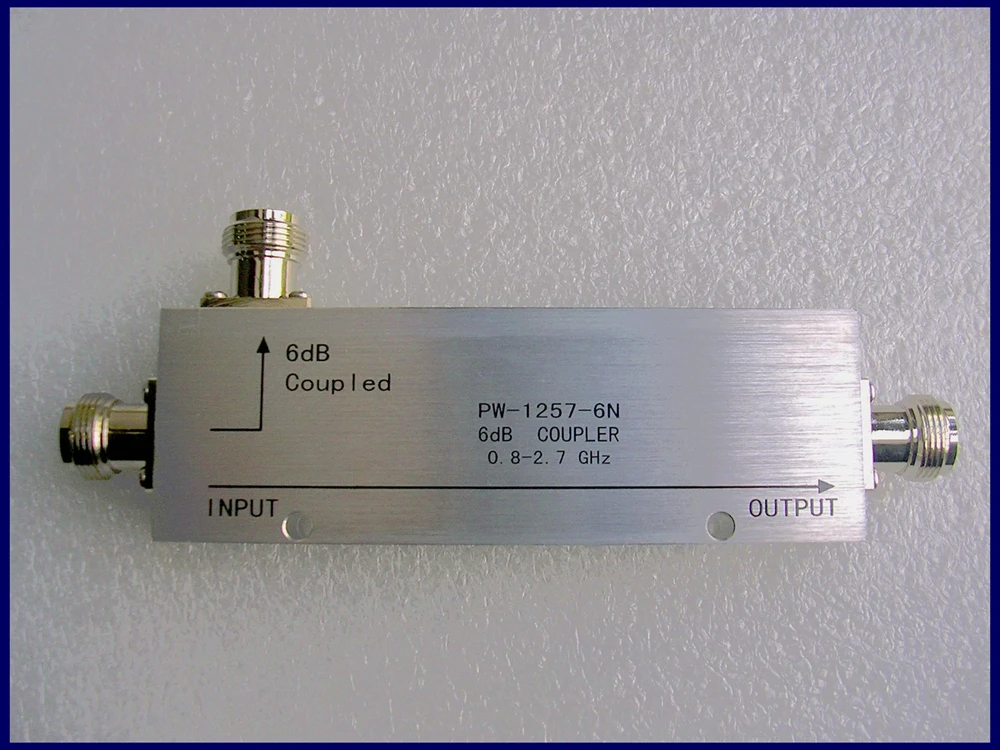

Detailed Images

Main Features

We also provide another surface treatment technology of paint, the parameters of products are same.

Color: Black.




Matte silver surface

Our Service

Pre-Sales Service

1.Your inquiry related to our products or prices will be           replied in 24hours;
2.Well-trained and experienced staffs to answer all your inquiries in fluent English;
3.Monthly output over10000pcs;
4.Strong package;
5. Sample order in small quantity is acceptable;

After-Sales Service

* Training how to instal our products, training how to use the products

* Engineers available to service installation overseas.

Packing & Delivery
Packaging
Size
55(L) * 46 (W) * 32 (D)
Weight
15.6KGS



Packaging Details
The normal package is carton

(Size: L*W*H).
Packaging
Size
55(L) * 46 (W) * 32 (D)
Weight
15.6KGS



Packaging Details
The normal package is carton

(Size: L*W*H).
